Multi Stage Open Drawer Magnets which are available in different styles to suit specific application needs. Drawer Magnets consist of rows of round magnetic tubes that are assembled into drawers. The tubes of the drawer magnets are aligned on alternating centers from the row directly above or below it. The powerful magnets at the neck of the molding machine stops the flow of the tramp material directly into the machine parts. Our drawer magnets are very essential engineering products which are used for protecting injection molding machines, molds and dies.

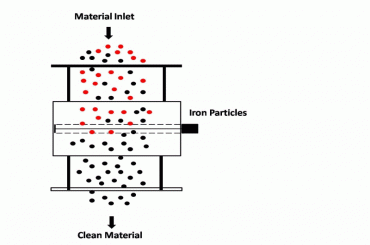

Powder drawer Magnets provide excellent equipment and product protection of medium and fine ferrous contaminants in dry, free flowing products under gravity flow. Multiple staggered rows provide maximum contact area for product flow. As product flows through the stainless steel housing, it cascades over the staggered rows of magnetic tubes.

Drawer Magnets should be cleaned periodically for the most efficient performance. To clean the magnetic tubes, release the latch assembly and open the door. Remove the grate assemblies one at a time. Remove the tramp metal by hand. Use extreme caution and wear gloves during the process. Rare earth magnets are extremely powerful and tramp metal is very difficult to remove by hand.
